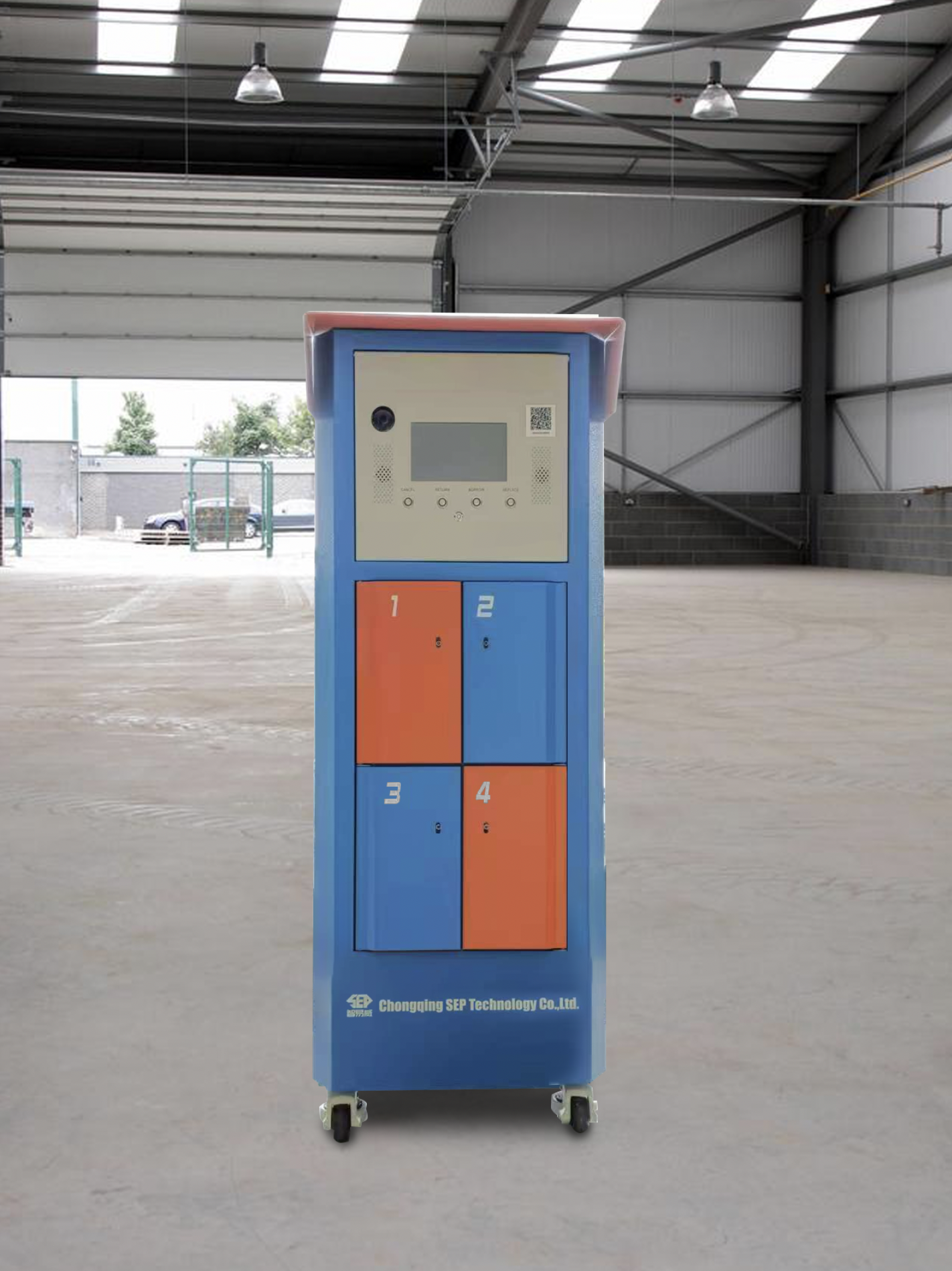

Cabinet Dimensions Cabinet: 770 x 525 x 1325 mm Single Slot: 370 x 166 x 206 mm Electrical Parameters Input Voltage: AC 200V～240V/50Hz Max Power : 4KW Max Charging Power per slot : 600W Maximum Charging Current: 10A Applicable Battery : 48~72V Standby Power : ＜100W Speakers (2 units) : 8Ω,2W Communication protocol : RS-485/CAN Working Environment Storage Temperature : -20℃~70℃ Working Temperature: -10℃~50℃ Humidity : 5%～75% no condensation
Protection Dust and water resistant: IP54 Fire Alarm : smoke, temperature and fire detective sensor Lightning protection Nominal discharge current: 20kA Max discharge current: 40kA Structure Materials : Cold rolled steel plate + aluminum alloy Thickness: Shell 1.5mm, Single compartment 2mm Compartment Load: 20kg

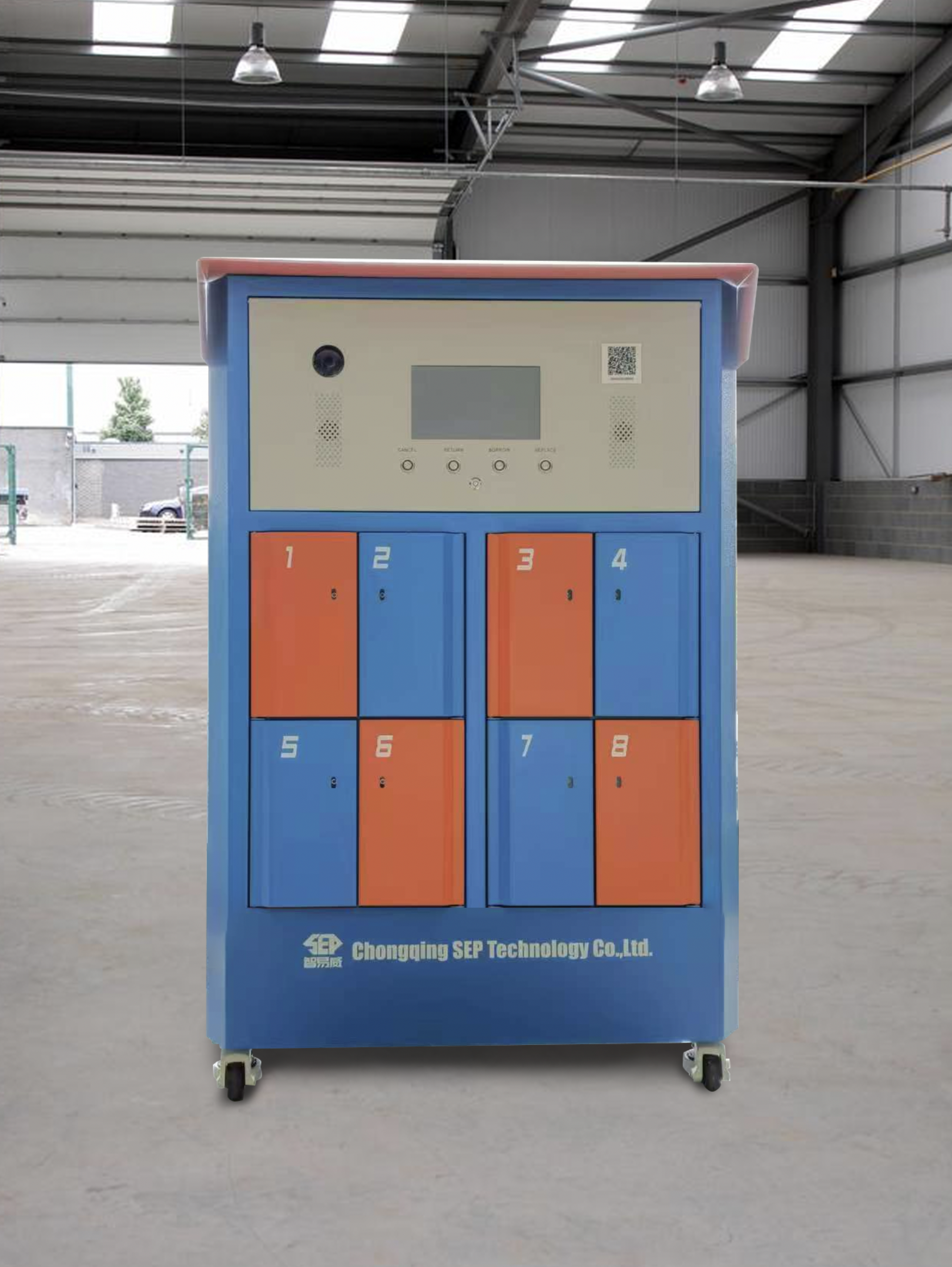

Cabinet Dimensions Cabinet: 770 x 525 x 1925 mm Single Slot: 370 x 166 x 206 mm Electrical Parameters Input Voltage: AC 200V～240V/50Hz Max Power : 8KW Max Charging Power per slot : 600W Maximum Charging Current: 10A Applicable Battery : 48~72V Standby Power : ＜100W Speakers (2 units) : 8Ω,2W Communication protocol : RS-485/CAN Working Environment Storage Temperature : -20℃~70℃ Working Temperature: -10℃~50℃ Humidity : 5%～75% no condensation
Protection Dust and water resistant: IP54 Fire Alarm : smoke, temperature and fire detective sensor Lightning protection Nominal discharge current: 20kA Max discharge current: 40kA Structure Materials : Cold rolled steel plate + aluminum alloy Thickness: Shell 1.5mm, Single compartment 2mm Compartment Load: 20kg

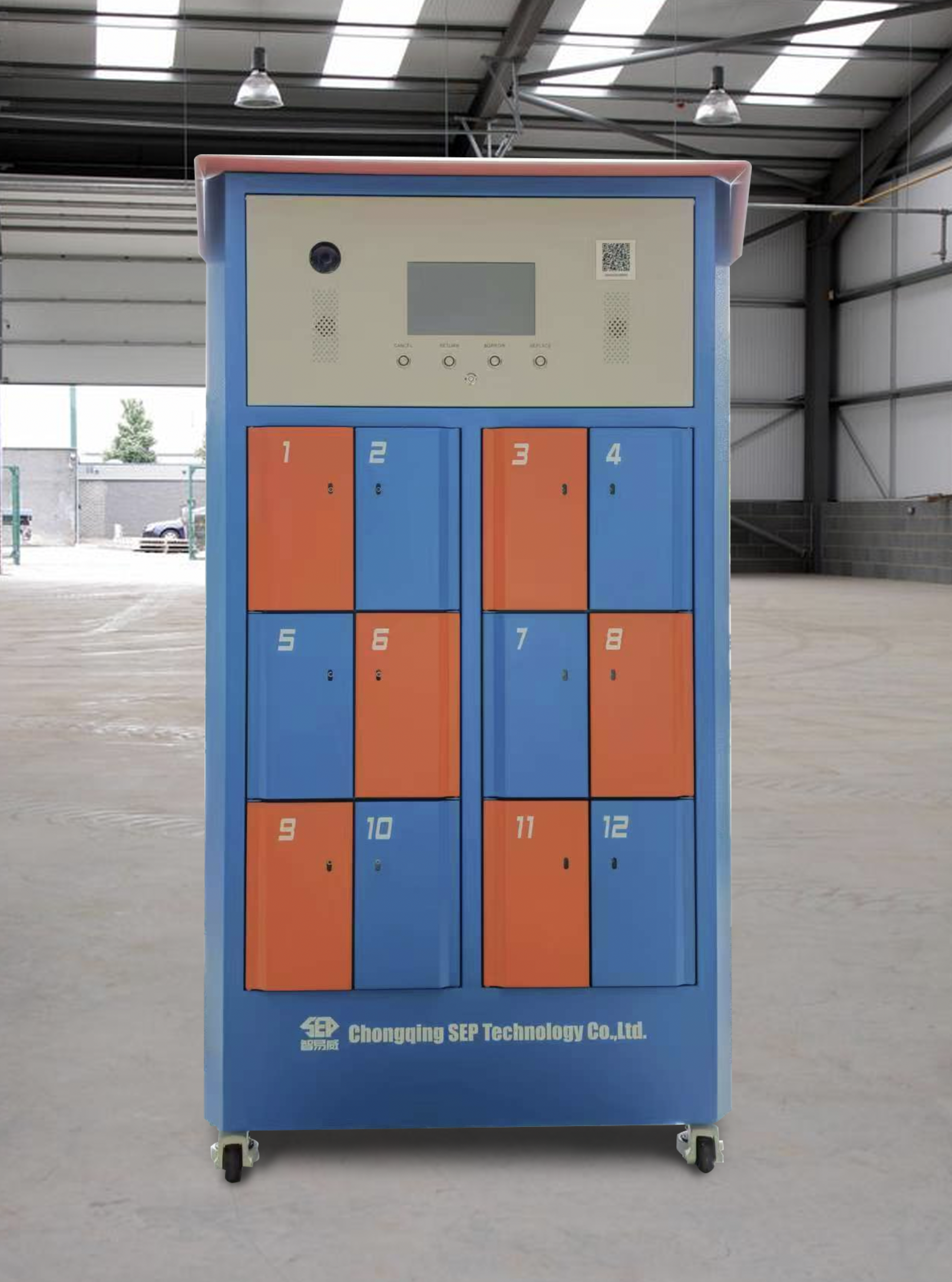

Cabinet Dimensions Cabinet: 770 x 1925 x 1625 mm Single Slot: 370 x 166 x 206 mm Electrical Parameters Input Voltage: AC 200V～240V/50Hz Max Power : 12KW Max Charging Power per slot : 600W Maximum Charging Current: 10A Applicable Battery : 48~72V Standby Power : ＜100W Speakers (2 units) : 8Ω,2W Communication protocol : RS-485/CAN Working Environment Storage Temperature : -20℃~70℃ Working Temperature: -10℃~50℃ Humidity : 5%～75% no condensation
Protection Dust and water resistant: IP54 Fire Alarm : smoke, temperature and fire detective sensor Lightning protection Nominal discharge current: 20kA Max discharge current: 40kA Structure Materials : Cold rolled steel plate + aluminum alloy Thickness: Shell 1.5mm, Single compartment 2mm Compartment Load: 20kg
